(N) TSCGEWOU |
|
High Voltage Reeling Cable 3 to 30kv |
 |
| |
Construction |
|
|
| |
Conductor |
|
Flexible tinned stranded copper |
| |
Insulation |
|
EPR Compound |
| |
Inner sheath |
|
polychloropene rubber |
| |
Braid |
|
yam braid screen(Anti-torsion) |
| |
Sheath |
|
polychloroprene rubber |
| |
|
|
|
| |
Technical data |
|
|
| |
Nominal voltage |
|
1.8 / 3kv to 18 / 30kv |
| |
AC test voltage |
|
6.0 kv to 43kS DIN VDE-0250 Part813 |
| |
Min. bending radius |
|
Acc.to DIN VDE 0298 Part 3 |
| |
|
|
6.25 x d(O.D > 21.5mm) |
| |
Temperature range |
|
flexing : -35°C to +60°C |
| |
|
|
static : -50°C to +80°C |
| |
Oil resistance |
|
DIN VDE 0473 |
| |
Weather resistance |
|
Very Good (UV.moisture) |
| |
Dynamic peak tensile stress |
|
40N/mm² |
| |
|
|
|
| |
Outstanding features |
|
|
| |
Flexible H.V. reeling Cable |
|
|
| |
Tensile load : up to 20N/mm² |
|
|
| |
Torsion stresses :±25°/m |
|
|
| |
|
|
|
| |
Application |
|
|
| |

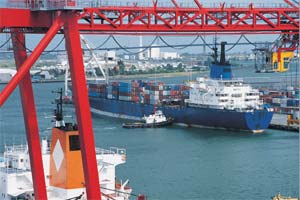

Gantry : travel speeds >180m/min |
|
|
| |
Trolley : up to 120m/min |
|
|
| |
 |
| |
