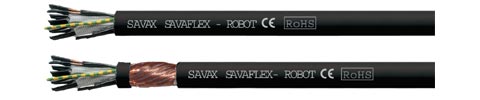

SAVAFLEX® - Robot / SAVAFLEX-Robot DP |
 |
| |
Construction |
|
|
| |
Conductor |
|
|
| |
0.14 mm² - 0.34 mm² |
|
bare copper strands, extra fine wires |
| |
Conductor |
|
bare copper strands acc. to DIN VDE 0295 |
| |
from 0.50 mm² |
|
class 6 + IEC 60228 class 6 |
| |
Insulation |
|
TPM |
| |
Core code |
|
with reference to DIN 47100 or |
| |
0.14 mm² - 0.34 mm² |
|
acc. to colour code US 2 |
| |
Core code |
|
black cores with consecutive numbers |
| |
from 0.50 mm² |
|
acc. to DIN VDE 0293 + HD 186; |
| |
|
|
green-yellow earth wire from 3 cores |
| |
Stranding |
|
specially adjusted layering |
| |
|
|
with netting tape over each layer |
| |
|
|
and one additional non-woven tape |
| |
|
|
over the outer layer |
| |
Sheath material |
|
PUR, acc. to DIN VDE 0282 |
| |
Sheath colour |
|
Orang (RAL2003) |
| |
|
|
other color on request |
| |
|
|
|
| |
Technical data |
|
|
| |
Nominal voltage Uo/U |
|
|
| |
from 0.50 mm² |
|
DIN VDE : 300/500V |
| |
Testing voltage |
|
|
| |
0.14 mm² - 0.34 mm² |
|
1500V acc. to DIN VDE 0472 part 509 |
| |
Testing voltage |
|
|
| |
from 0.50 mm² |
|
3000V acc. to DIN VDE 0281 part 2 |
| |
|
|
+ HD 21.2 |
| |
Torsion angle |
|
up to ±450°/0,5 m (tested) |
| |
Min. bending radius |
|
continuously flexible 7 x d / from 34 cores |
| |
|
|
15 x d |
| |
Temperature range |
|
UL |
CSA |
DIN VDE |
| |
fixed laying |
|
up to +80°C |
up to +75°C |
-50/+90°C |
| |
flexible application |
|
up to +80°C |
up to +75°C |
-40/+90°C |
| |
Fire performance |
|
UL FT1 + CSA FT1 and IEC 60332-1 |
| |
Oil resistance |
|
very good - PUR TMPU acc. to |
| |
|
|
DINVDE 0282 part 10 + HD22.10 |
| |
Chem. resistance |
|
good against acids, alkalines, solvents, |
| |
|
|
hydraulic liquids etc. |
| |
Continuous flexibility |
|
very good |
| |
|
|
|
| |
Outstanding features |
|
|
| |
rugged and reliable |
|
|
| |
torsion angle up to ±450° over 0.5m |
|
|
| |
UL/CSA |
|
|
| |
Bundle |
|
|
| |
 |
| |
